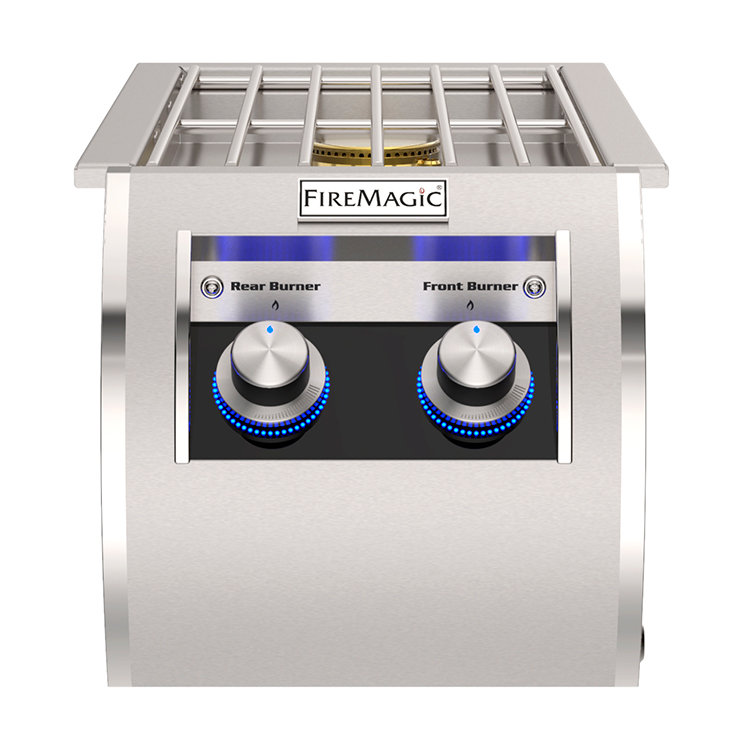

Fire Magic Echelon Diamond Double Side Burner - Built-In


List Price: $1,223.00
Price: $1,039.55
You Save: $183.45 (15%)
SKU: 32814

Product Information


With the contoured face and backlit knobs to complement the Echelon Diamond Series Grill, this Double Side Burner provides two independently controlled 15,000 BTU burners for side dishes and sauces.

Product Specifications


  • Available in Propane or Natural Gas
  • Stainless Steel Construction
  • Two (2) 15,000 BTU Solid Brass Sealed Burner - 30,000 Total BTUs
  • Precise Temperature Control Valve
  • Blue LED backlit safety knobs
  • Electronic ignition system
  • Separate controls for each burner
  • Cut-Out Dimensions - 11 1/2” W x 22 3/4” D x 12” H
  • Includes 6' wire harness to tie into Echelon Diamond grill power supply
  • Requires additional power supply if installed as a stand alone unit or over 6' from an Echelon grill


Product Warranty


  • Fire Magic cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are WARRANTED for as long as you own (LIFETIME) your Fire Magic grill.
  • Fire Magic cast brass burners, brass valves, backburner assemblies (except ignition parts), and manifold assemblies are WARRANTED for FIFTEEN (15) YEARS from the date of purchase of your Fire Magic grill.
  • Fire Magic sideburners and all other Fire Magic grill components (except ignition and electronic parts) are WARRANTED for THREE (3) YEARS from the date of purchase of your Fire Magic product
  • Fire Magic ignition systems (excluding batteries), electronic components (including lights and thermometers), and accessories are WARRANTED for ONE (1) YEAR from date of purchase.
  • WARRANTY applies only to the original purchaser and to single family residential use only


Product Shipping


  • Free Shipping on all orders over $99.
  • In stock products ship within 1-2 business days.
  • Transit times typically vary from 1-6 business days.
  • This product generally ships with a standard carrier and should not require a signature
  • This product may ship LTL freight as part of a larger order or due to weight
  • Please be sure to inspect the all freight shipments carefully and note any damages or missing items on the delivery receipt.
  • In the event of possible concealed damage, freight customers MUST write "Pending Inspection" next to their signature on the delivery receipt. Failure to write "Pending Inspection" on the delivery receipt will bar the customer from recovery for undiscovered/concealed damage, after the fact.
